Products > PZT Ceramic > General Infomration
Piezoelectric Ceramic Shape & Size

Material ( Option )
1. BT Ceramic
    * Barium titanate
    * Lead-Free Piezoelectric Ceramic
    * BaTiO3
2. PZT Ceramic ( Lead Zirconate Titanate )



Overview:

Product Materail :

1.     BT Ceramic ( Lead-Free , Barium Titanate , BaTiO3 )

2.     PZT Ceramic ( Lead Zirconate Titanate )

3.     PZT Composite Ceramic



Piezoelectric Ceramic : Shapes and Sizes

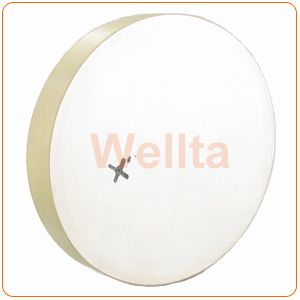

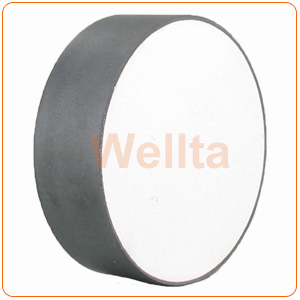

Piezo Discs

Piezo Disc Outer Diameter : 3mm ~ 220mm
Piezo Disc Thickness : 0.17mm ~ 20mm depending on Material

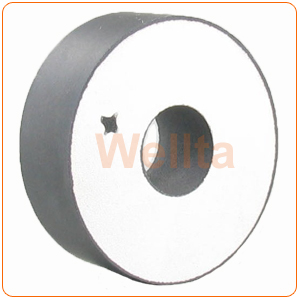

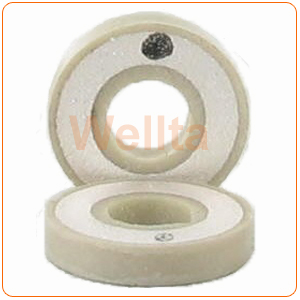

Piezo Rings

Piezo Ring Outer Diameter : 5mm ~ 220mm
Piezo Ring Inner Diameter : 2mm ~ 100mm depending on OD & thickness
Piezo Ring Thickness : 0.17mm ~ 20mm depending on material







Piezo Plates ( Square / Rectangle )

Piezo Plate Length : 5mm ~ 220mm
Piezo Plate Width : 2mm ~ 50mm

Piezo Plate Thickness : 0.17mm ~ 20mm depending on material, length, and width





Piezo Cylinders / Rod

Piezo Cylinder Outer Diameter : 3mm ~ 200mm
Piezo Cylinder Wall Thickness : 5mm ~ 20mm






Piezo Tubes

Piezo Tube Outer Diameter : 8mm ~ 200mm
Piezo Tube Length : 5mm ~ 190mm
Piezo Tube Wall Thickness : 10mm ~ 100mm






Piezo Ball / Hemisphere / Focal Bowl

Piezo Outer Diameter : 15mm ~ 150mm
Piezo Wall Thickness : 1mm ~ 8mm

Piezo the hole diameter of Ball : 5mm ~ 9mm
