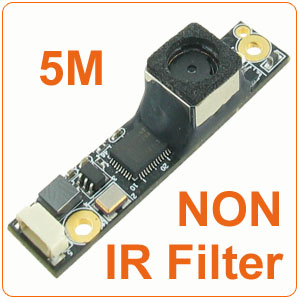

NON-Filter USB Camera Module (5M)
W5AN3-D18F
* 5M Module
* Full HD (1920 * 1080) , 30fps
* Lighting LED, White (Flasflight )
* Diagonal 68.2°



Overview:

Feature
·       USB 2.0 high-speed and full-speed compatible
·       USB Video Class 1.1 compliant
·       USB2.0 HS/FS auto sense and switch
·       Operation Voltage, USB 3.3V
·       Easy to use 5-pin 0.8mm pitch connectors type
·       Brightness control
·       Contrast control
·       Hue control
·       Saturation control
·       Sharpness control
·       Gamma control
·       Automatic White Balance Control
·       Back-light Compensation Control
·       Gain Control
·       Anti-Flicker Control
·       Automatic Exposure Control
·       Lens shading compensation
·       Defect-pixel correction
·       Color correction
·       De-noise function



Go Top
Specifications:

Resolution & Frame Rates Support



Resolution

Frame Rates

YUY2

MJPEG

5.0Mp(2592 * 1944)

2 fps

15 fps

Full HD(1920 * 1080)

6 fps

30 fps

2.0Mp(1600 * 1200)

2 fps

15 fps

SXGA(1280 * 1024)

2 fps

15 fps

HD(1280 * 720)

12 fps

30 fps

VGA(640 * 480)

30 fps

30 fps

CIF(352 * 288)

30 fps

30 fps

QVGA(320 * 240)

30 fps

30 fps

QCIF(176 * 144)

30 fps

30 fps

Ps.Default setting is VGA (640 * 480)@MJPEG resolution





Image Format Support

·       YUY2, MJPEG

System Support

·        Windows XP with SP3, 32/64 bit OS

·        Windows Vista, 32/64 bit OS

·        Windows 7, 32/64 bit OS

·        Windows 8.1, 32/64 bit OS

·        Windows 10, 32/64 bit OS

·        Mac OS X 10.4.8 or Later

·        Linux with UVC driver

Device Name

·       5M WebCam



Other

·       Power saving support, Suspend / Hibernation

·       Lighting LED, White ( Flashlight )

·       ROHS / REACH compliant


System SPEC



Category

ITEM

SPEC

Module

Dimension (D*W* H)

40±0.2 * 8.5±0.2 * 6.8±0.2 (mm)

Weight

TBD (g)











LENS

Lens Composition

4 Plastic (4E)





Field of View

Mechanical

71.8° ±5%

Diagonal(D)

68.2° ±5%

Horizontal(H)

56.88° ±5%

Vertical(V)

44.22° ±5%

B.F.L (Optical)

1.69 mm

IR Wavelength (T50%)

None

TV Distortion

< 1 %

F No.

2.8 ±5%

Focus Mode

Auto Focus (AF)

Focus Range

10cm ~ ~ Infinity



Image Sensor

CMOS Image Sensor

1/4” Sensor (OVT OV05640-A71A)

Active Array Size

5.0M pixel ( 2592(H) x 1944(V) )

Pixel Size

1.4 um x 1.4 um

Backend IC

Controller

CMOS Sensor Controller:Sunplus SPCA2089A

Image Format Output

YUY2, MJPG


Electrical SPEC



Parameter

Rating

UNIT

Input Voltage

USB 3.3V ±250mV

V



Current

Drive On & Video Streaming

Under 280mA



A

Suspend

Under 2.5mA

Temperature Range

Operating0~ 60

Stable image0~ 50
